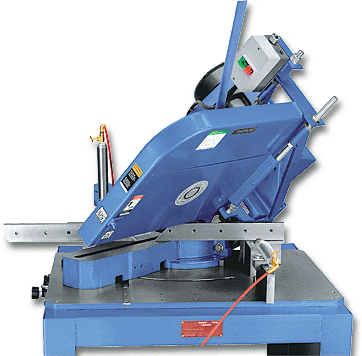

16" Mitre & Compound cut-off saw

These saws cut your costs, are accurate, rugged, and give long life. They cut wood, plastic, and non-ferrous metals with high speed and carbide blades, and abrasive cut steel. The CM60 is a single head version of the Model CDM60.

Specifications

  • Mitre & Compound cut-off saw.

  • Blade Capacity: 16"

  • 3 H.P. 3 phase

  • Magnetic Starter

  • Cutting Capacity

  • 45°: 4" X 7¼"

  • 90°: 4" X 10½"

  • Compound: 2½" X 10

Arbor

  • 1" 25mm with 3-1/" 89mm saw collars; mounted on preloaded and sealed bearings; 2-belt drive centered between bearings; 2800 RPM of spindle.

Cutting Capacity

  • 45° Mitre; 4" 102mm High x 7-1/4" 184mm Wide 90° Straight Cut; 4" 102mm High x 10-1/2" 267mm Wide

  • 90° Front to Back/45° Compound; 2-5/8" 67mm High x 10" 254mm Wide. Model CM60

Motors & Voltages

  • 3 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motor, 60 Hz, 1725 RPM with starter; 5 H.P. available. Consult factory for amerage ratings.

Actuation

  • Hand operated standard; optional power downfeeds of sawheads actuated by Two-Hand, Anti-Tie Down Maintained Contact Safety Control.

Optional Extras Include

  • Power Downfeeds of Sawheads, Clamps, Measuring Fences and Table Supports.

Blade Capacity

  • 16" 406mm; saw blades not included.
